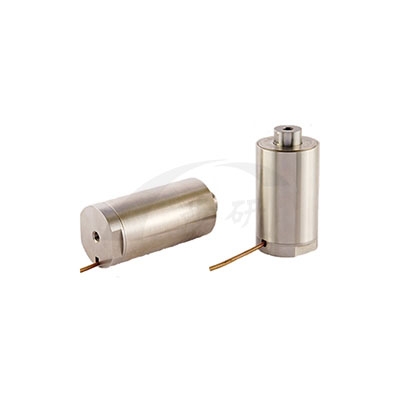

壓電促動器 ∣ 高壓
應用領域：靜態和動態精密定位、光纖定位、激光調諧、納米技術。
- 標稱行程： 9 ~ 200μm
- 標稱出力： 4000N~50000N
- 外形尺寸： ?18、?20、?25、?35、?45mm
- 驅動電壓： 0~+1000V
咨詢服務熱線：
13162165677型號 | 最大/標稱行程 | 剛度 | 標稱推力/拉力 | 靜電容量 | 諧振頻率 | 外殼長度L | 直徑 |
[μm]±10% | [N/μm]±20% | [N] | [μF]±20% | [kHz] | [mm]±0.3 | [mm]±0.3 | |
PSt1000/10/20 VS18 | 27/20 | 150 | 4000/700 | 0.045 | 35 | 33 | ?18 |
PSt1000/10/40 VS18 | 55/40 | 75 | 4000/700 | 0.11 | 27 | 51 | ?18 |
PSt1000/10/60 VS18 | 80/60 | 50 | 4000/700 | 0.17 | 23 | 69 | ?18 |
PSt1000/10/80 VS18 | 105/80 | 35 | 4000/700 | 0.22 | 20 | 87 | ?18 |
PSt1000/10/100 VS18 | 130/100 | 30 | 4000/700 | 0.27 | 15 | 105 | ?18 |
PSt1000/10/125 VS18 | 160/125 | 25 | 4000/700 | 0.33 | 10 | 125 | ?18 |
PSt1000/10/150 VS18 | 200/150 | 17 | 4000/700 | 0.39 | 5 | 145 | ?18 |
PSt1000/10/200 VS18 | 260/200 | 10 | 4000/700 | 0.51 | 3 | 185 | ?18 |
PSt1000/16/5 VS25 | 12/7 | 800 | 12000/1500 | 0.06 | 40 | 26 | ?25 |
PSt1000/16/20 VS25 | 27/20 | 400 | 12000/1500 | 0.15 | 35 | 35 | ?25 |
PSt1000/16/40 VS25 | 55/40 | 200 | 12000/1500 | 0.36 | 30 | 53 | ?25 |
PSt1000/16/60 VS25 | 80/60 | 120 | 12000/1500 | 0.54 | 27 | 71 | ?25 |
PSt1000/16/80 VS25 | 105/80 | 90 | 12000/1500 | 0.72 | 23 | 89 | ?25 |
PSt1000/16/100 VS25 | 130/100 | 75 | 12000/1500 | 0.9 | 20 | 107 | ?25 |
PSt1000/16/125 VS25 | 160/125 | 60 | 12000/1500 | 1.1 | 15 | 127 | ?25 |
PSt1000/16/150 VS25 | 200/150 | 50 | 12000/1500 | 1.4 | 7 | 147 | ?25 |
PSt1000/16/200 VS25 | 260/200 | 35 | 12000/1500 | 1.9 | 4 | 187 | ?25 |
PSt1000/25/7 VS35 | 12/7 | 1800 | 25000/4000 | 0.14 | 40 | 33 | ?35 |
PSt1000/25/20 VS35 | 27/20 | 900 | 25000/4000 | 0.35 | 35 | 42 | ?35 |
PSt1000/25/40 VS35 | 55/40 | 450 | 25000/4000 | 0.8 | 30 | 60 | ?35 |
PSt1000/25/60 VS35 | 80/60 | 300 | 25000/4000 | 1.25 | 27 | 78 | ?35 |
PSt1000/25/80 VS35 | 105/80 | 200 | 25000/4000 | 1.7 | 23 | 96 | ?35 |
PSt1000/25/100 VS35 | 130/100 | 180 | 25000/4000 | 2.15 | 20 | 114 | ?35 |
PSt1000/25/125 VS35 | 160/125 | 150 | 25000/4000 | 2.5 | 15 | 134 | ?35 |
PSt1000/25/150 VS35 | 200/150 | 120 | 25000/4000 | 3.1 | 7 | 154 | ?35 |
PSt1000/25/200 VS35 | 260/200 | 90 | 25000/4000 | 3.7 | 4 | 194 | ?35 |
PSt1000/35/7 VS45 | 12/7 | 4000 | 50000/6000 | 0.3 | 37 | 33 | ?45 |
PSt1000/35/20 VS45 | 27/20 | 2000 | 50000/6000 | 0.8 | 33 | 42 | ?45 |
PSt1000/35/40 VS45 | 55/40 | 1000 | 50000/6000 | 1.6 | 38 | 60 | ?45 |
PSt1000/35/60 VS45 | 80/60 | 600 | 50000/6000 | 2.5 | 25 | 78 | ?45 |
PSt1000/35/80 VS45 | 105/80 | 450 | 50000/6000 | 3.3 | 21 | 96 | ?45 |
PSt1000/35/100 VS45 | 130/100 | 350 | 50000/6000 | 4.1 | 18 | 114 | ?45 |
PSt1000/35/125 VS45 | 160/125 | 300 | 50000/6000 | 4.9 | 14 | 134 | ?45 |
PSt1000/35/150 VS45 | 200/150 | 220 | 50000/6000 | 5.7 | 7 | 154 | ?45 |
PSt1000/35/200 VS45 | 260/200 | 150 | 50000/6000 | 6.5 | 4 | 194 | ?45 |
